PC Suite
A user-friendly PC configuration utility for SensoGuard products.
PC Suite is the tool SensoGuard installers and technicians use to get every sensor talking correctly, on day one and years later. Instead of tuning each unit by hand in the field, it standardizes configuration and calibration across an entire deployment, whether that's a single Seismic Shield installation or a fleet of AIO sensors spread across a border.
Two Operational Modes
Every SensoGuard sensor ships ready to configure the moment it's connected, PC Suite gives installers two focused modes so setup and maintenance never require guesswork.

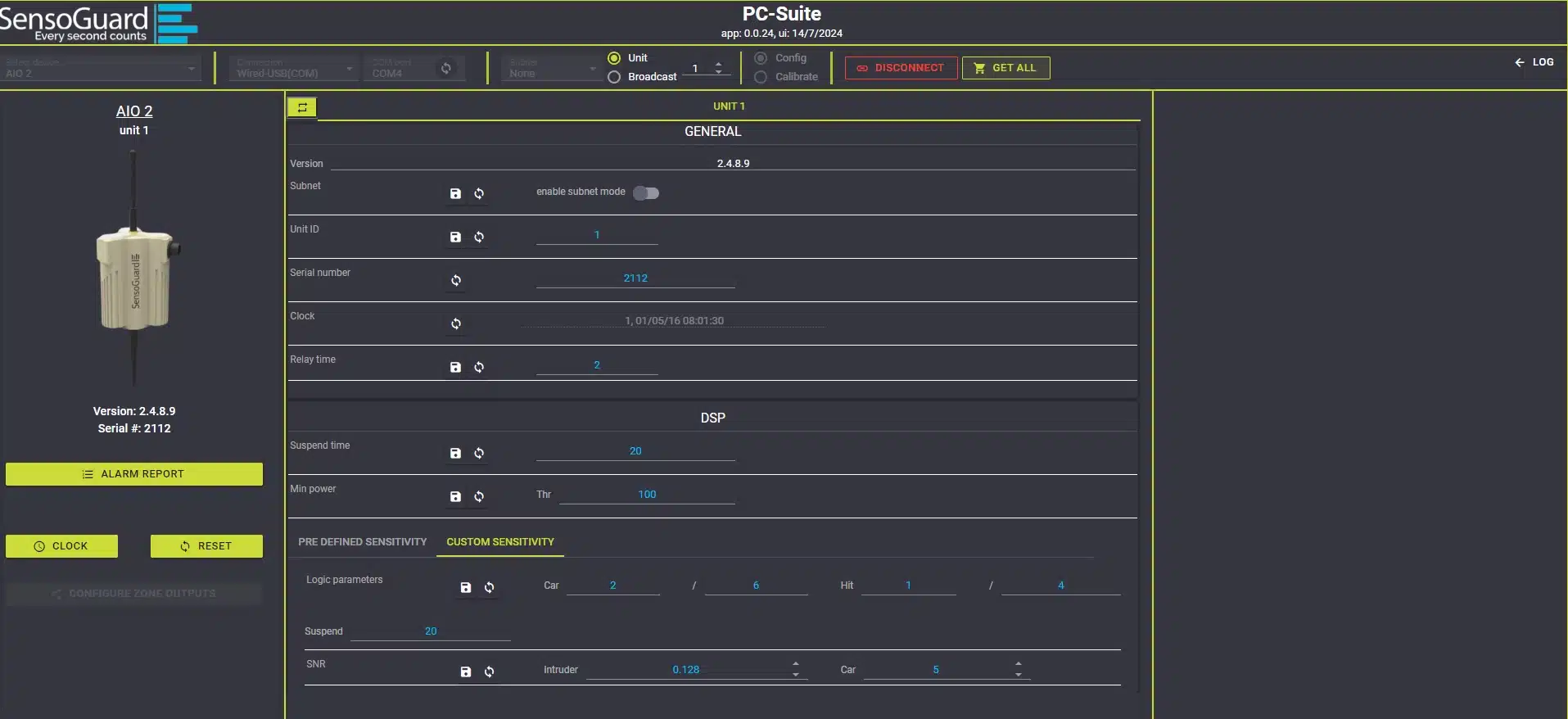

Configuration Mode
- Adjust threat sensitivity levels for each threat category
- Set alarm suspension intervals
- Set keep-alive timing parameters
Calibration Mode
- Run a live 2-minute walking or driving test and watch Signal-to-Noise Ratio, Power, and Noise update in real time
- Simulate alarm behavior by adjusting SNR threshold, count threshold, and time-window before committing to settings
- Verify a sensor is reading correctly before it's installed and sealed
- Re-calibrate existing units without replacing hardware
Built for Every Stage of Deployment
The same utility follows a sensor from first install through years of fleet management
New Sensor Installation
Configure sensors correctly the first time, before they're buried and sealed.
Configuring & Calibrating Existing Units
Adjust sensitivity or timing on units already in the ground, without digging them up.
Fleet-Wide Configuration
Keep settings consistent across every sensor in a large or multi-site deployment.
Connectivity Options
Configure sensors locally, over the network, or through a wireless receiver, whichever fits how the unit is deployed
USB (COM)
Connect the provided configuration cable directly to the sensor or Hub Unit for a wired, on-site connection.
TCP/IP
Configure any Hub unit or standalone detector over the same network as your PC, no on-site visit required.
Wireless Receiver
Connect a wireless receiver to your PC to configure wireless sensors and Hub units without running any cable.
Unit or Broadcast
Configure a single sensor at a time, or push the same settings to every connected sensor at once in Broadcast mode.
Compatible With Every SensoGuard System
One utility configures the entire product line, from a single buried sensor to a full Hub-managed deployment
InvisiFence Plus
Sensor Cable and both HUB variants (Relay Card and TCP/IP).
Seismic Shield
Wireless HUB Relay Card and the AIO X sensor.
UGS/Tactical Systems
AIO XR, AIO 2.0, TACT-PIR, TACT-RADAR, and MINI-VIB sensors, plus the Wireless HUB.
Standalone Detectors
SG-1, SG-3, and SG-6 units, each configurable over USB or TCP/IP.
Frequently Asked Questions
Common questions from installers and technicians setting up PC Suite for the first time.
What are the system requirements?
Minimum: Windows 10, an i3 CPU or above, 4GB RAM, and 250GB storage. Recommended: Windows 11, an i5 CPU or above, 8GB RAM, and a 250GB SSD.
Can I configure and calibrate a sensor remotely?
Yes, as long as the device and your PC are connected to the same network, both Config and Calibrate mode work over TCP/IP exactly as they do over a local USB connection.
How do I find the right COM port for a wired connection?
Open Windows Device Manager, expand “Universal Serial Bus controllers,” and look for your device's assigned COM port. If several are listed, disconnect the device and see which port disappears to confirm which one is yours.
Can I configure multiple sensors at the same time?
Yes. Select “Broadcast” instead of “Unit” when connecting, and the settings you choose apply to every connected sensor at once, useful for large or multi-site deployments.
