InvisiFence Plus

Unmatched Reliability, Invisible Security Protection Fence

BURIED SENSOR CABLE

The InvisiFence Plus system is the first and only fully digital buried sensor cable system for perimeter security. The InvisiFence Plus security ground sensors cable creates an invisible perimeter security system around the secured area – one that is impossible to dig under or jump over without being detected.

How It Works?

The InvisiFence Plus includes adaptive self-learning algorithms with exceptionally high recognition level of diverse threats. It can distinguish between various threats above or below ground: footsteps, moving vehicles, digging and more. Whenever fluctuations occur even before the intrusion takes place.

1. Sensors

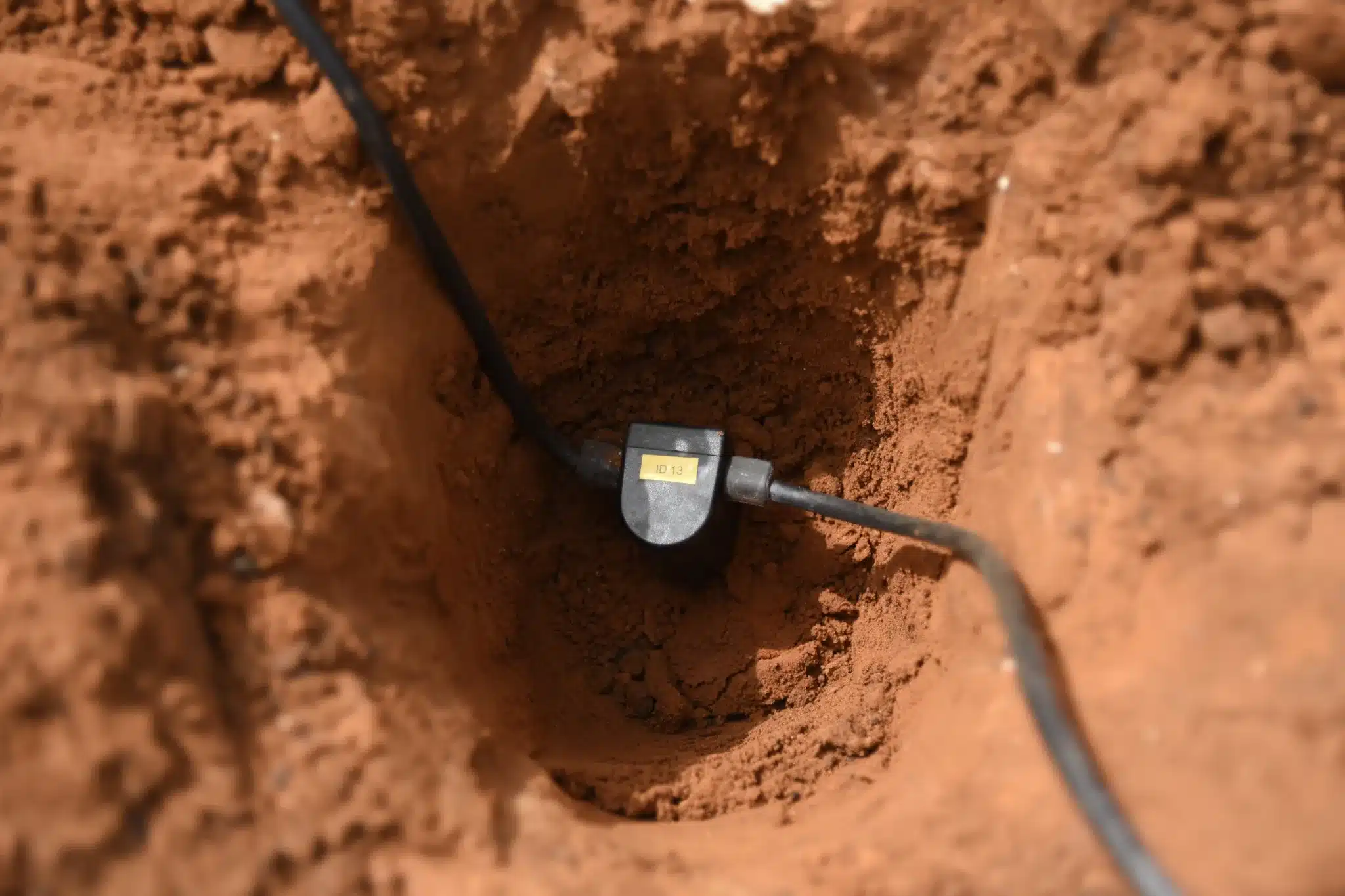

The InvisiFence Plus include a sensor cable and an Hub Unit. The sensor cable should be buried 40cm below the ground.

2. Analysis

The InvisiFence Plus includes adaptive self-learning algorithms with exceptionally high recognition level of diverse threats.

3. Detection

Upon detection the system can distinguish between various threats above or below ground: footsteps, moving vehicles, digging and more.

4. Alert

An alarm is triggered in the system that can be passed to an Alarm System or VMS.

InvisiFence Plus buried sensor cable

Footsteps

Moving Vehicles

Digging

System Components​​

The InvisiFence Plus system composed of a buried sensor cable with smart seismic sensors and a Hub unit. The system features fully distributed sensing and processing capabilities. Each sensor includes a DSP processor for local sampling & processing.

Hub Unit

The InvisiFence Plus system includes a Hub unit on each section. There are single sided and double sided Hub units. Single side Hub unit can control sensors cable line with up to 39 sensors single sided Hub can be placed on any point of the sensors cable line (not only on the beginning/end). Double sided Hub Unit can control 2 lines of 39 sensors double sided Hub must be placed on the middle of sensors cables, so it will have up to 39 sensors to each side).

Sensor Cable

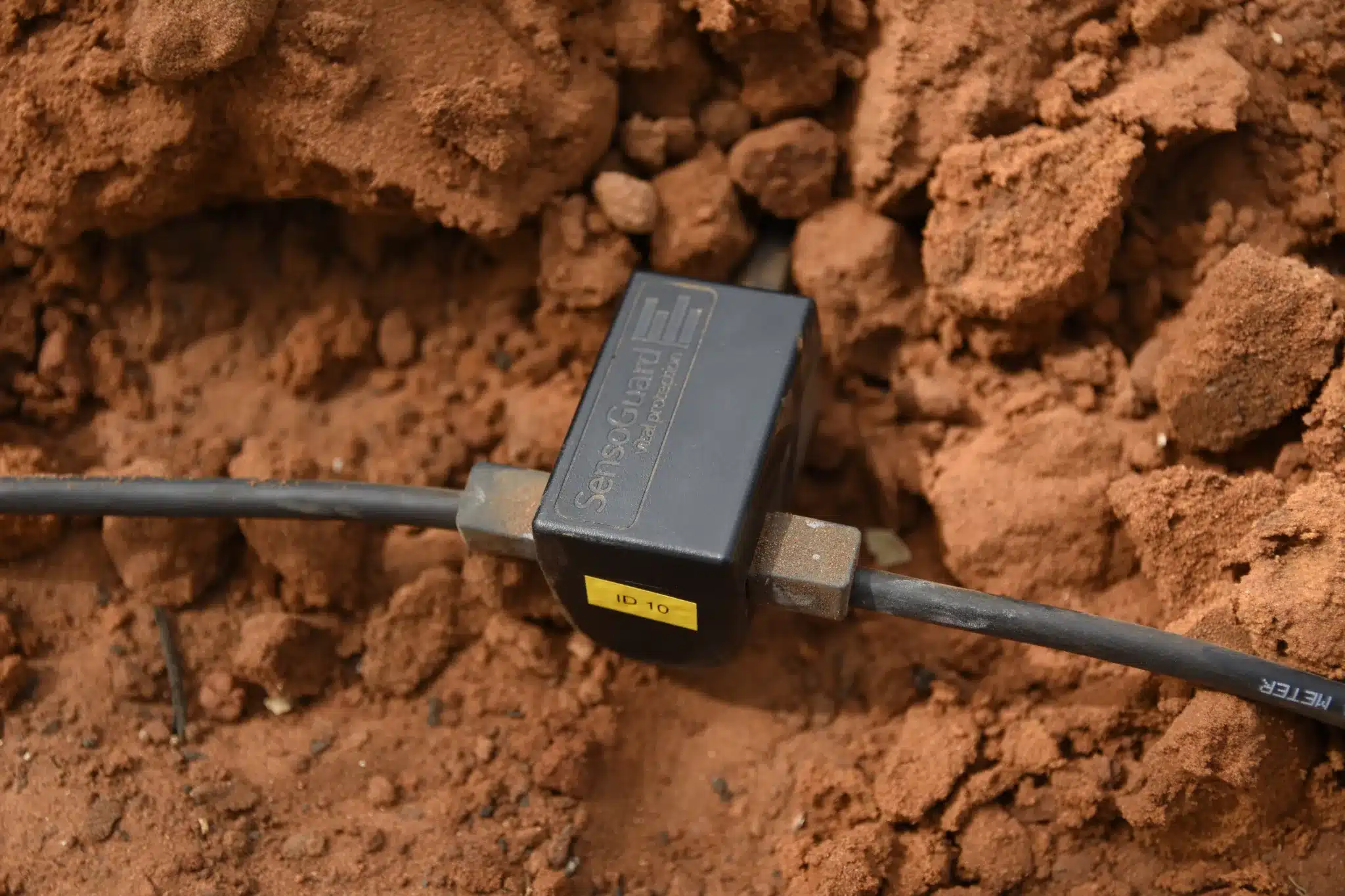

The InvisiFence Plus buried sensor cable is a line with up to 38 smart seismic sensors. Each sensors includes a DSP chip which analyze seismic signal locally, The InvisiFence Plus is a fully digitally distributed sensors system. Sensors cable is supplied at lengths of up to 38 sensors. Default lengths are: 16 sensors / 32 sensors / 38 sensors. Sensors cable includes 4 wires for DC and RS485 communication bus

Flexible Layout For Diverse Needs​​​

Suitable for small residences to long borders. Modular design and independent sections operation, ensures scalability and adaptability.

No single point of failure ensures system durability. Adapts to any site layout with ease, you can cut the digital sensor cable anywhere needed.

InvisiFence Continuous Layout - buried sensor cable

Continuous Installation

This layout provides continuous virtual fence around the area of interest.

InvisiFence Section Layout - buried sensor cable

Section Installation

This layout ensures that security coverage can be customized and adjusted according to specific site requirements. Maintaining comprehensive protection while accommodating practical needs like vehicle access or budget limitations.

Seamless Integration for Enhanced Security​​

Connected to Existing Alarm System

The sensors and cameras links to the alarm system via dry contact, and alerts are received through the Alarm System.

Built for Harsh Environments​​

InvisiFence Plus is designed to meet military standards, ensuring robust performance in extreme conditions. With an IP68 rating, it operates reliably in temperatures ranging from -40°C to 85°C (-40°F to 185°F). This makes it ideal for both harsh environmental conditions and critical security applications.
